When warehouse floor space becomes limited, adding a mezzanine is an effective way to make better use of vertical space. Two common options are Structural Steel Mezzanines and Rack Supported Mezzanines.
Although both systems create additional usable levels, they differ in structure, flexibility, investment, and suitable applications.
What Is a Structural Steel Mezzanine?

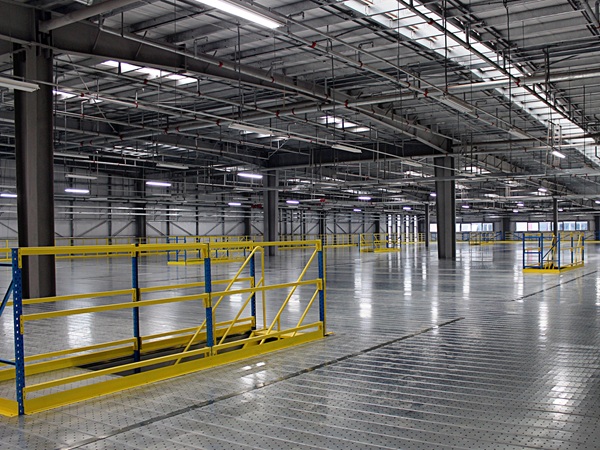

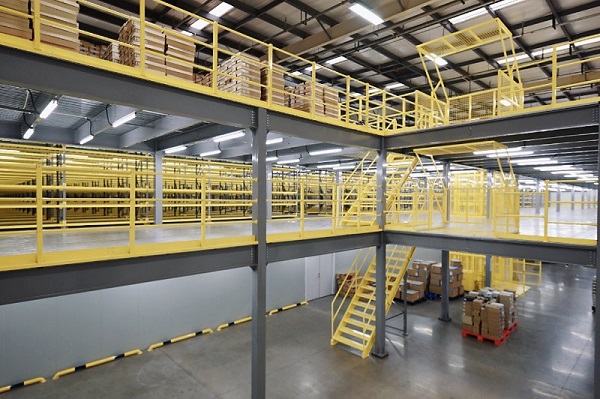

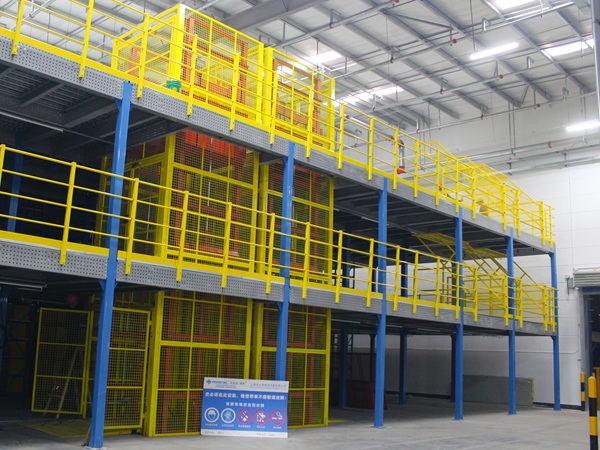

A Structural Steel Mezzanine is an independent elevated platform supported by steel columns and beams.
Unlike a rack supported mezzanine, the platform does not depend on pallet racking for structural support. This allows the lower level to remain relatively open and flexible for different operational purposes.
Structural steel mezzanines are commonly used for:
- Storage areas
- Shelving systems
- Sorting zones
- Offices
- Production support areas
- Open working space
Structural Steel Mezzanine vs Rack Supported Mezzanine
| Feature | Rack Supported Mezzanine | Structural Steel Mezzanine |
|---|---|---|
| Support Structure | Supported by racking uprights | Independent steel columns and beams |
| Lower-Level Space | Mainly used for storage | More open and flexible |
| Main Purpose | Storage and order picking | Storage, working areas, offices, sorting |
| Initial Investment | Generally more economical | Usually higher due to independent structure |
| Layout Flexibility | Based on rack arrangement | More flexible for changing layouts |
| Best Suited For | High-density storage | Multi-purpose warehouse space |
When to Choose a Rack Supported Mezzanine
A Rack Supported Mezzanine is more suitable when storage capacity is the main priority.
Consider this system if:
- You need higher storage density
- Your warehouse handles pallet or carton storage
- Order picking is an important part of daily operations
- You want to increase capacity without expanding the building
- You prefer a storage-focused and cost-effective solution
Because the mezzanine level is integrated with the racking structure, it is particularly suitable for warehouses that combine storage and picking operations.
When to Choose a Structural Steel Mezzanine
A Structural Steel Mezzanine is a better option when flexibility and open working space are more important.
It is suitable when:
- Large open areas are required
- Independent shelving will be installed
- Office or production areas are needed

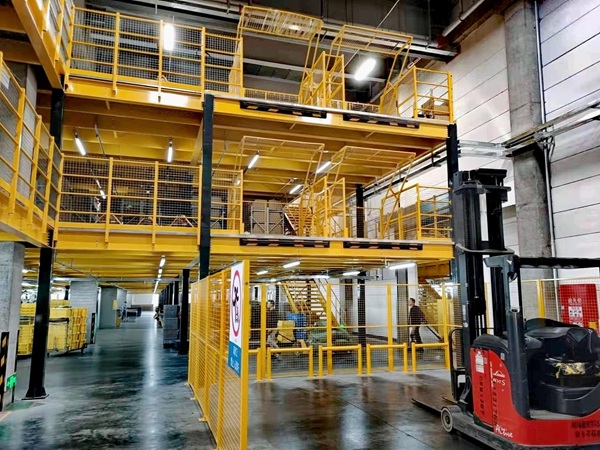

- Forklifts need to operate underneath the platform
- Future layout changes may be required
The independent steel structure makes it easier to adapt the lower level to different warehouse functions.
Which Mezzanine System Should You Choose?
There is no single mezzanine solution suitable for every warehouse.
A Rack Supported Mezzanine is generally better for storage-intensive operations that need higher density and efficient picking.
A Structural Steel Mezzanine is more suitable for warehouses that require open space, flexible layouts, offices, work areas, or independent storage equipment.
Before making a decision, consider:
- Warehouse dimensions
- Clear height
- Required load capacity
- Storage method
- Forklift operation
- Picking workflow
- Future expansion plans
Custom Mezzanine Solutions
Maxrac provides customized Structural Steel Mezzanines and Rack Supported Mezzanine Systems for warehouses, factories, logistics centers, and other industrial facilities.
Our support can include:
- Warehouse layout planning
- Mezzanine system selection
- Load calculation
- Customized design
- Manufacturing
- Installation guidance
Send us your warehouse dimensions, required load capacity, storage method, and operational requirements to receive a suitable mezzanine solution.
